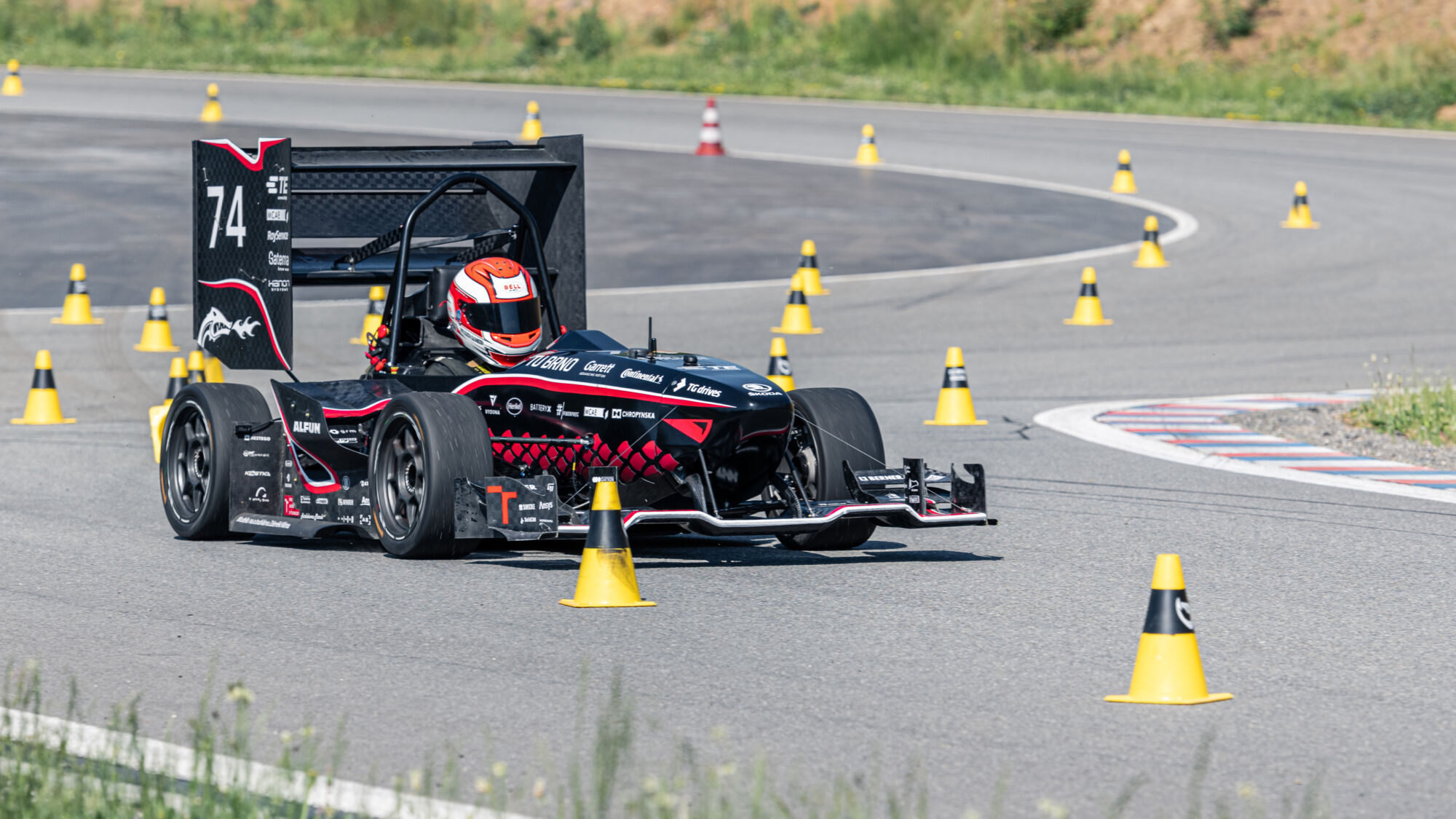

DRAGON X

  • YEAR: 2020/2021
  • COMPETITION: FS Netherlands, FS Czech Republic, FS East
  • WEIGHT: 175 kg
  • MAXIMUM SPEED: 115 km/h
  • ACCELERATION 0 - 100 km/h: 3,1 s
  • Engine
    water cooled single cylinder turbocharged Husqvarna FE 501
    maximum power: 61 kW at 10500 rpm
    maximum torque: 72 Nm at 7500 rpm
    fuel: E85
  • Gearbox
    three-speed, shift-gear change system with paddles, pneumatic actuated with own developed control system
    differential Drexler with limited slip
  • Chassis
    composite full-monocoque
  • Aeropackage
    multi-element front and rear wing, sidepods, side and rear diffusers
  • Suspension
    "Roll-heave" concept, Öhlins TTX 25 FSAE shock absorbers, one for cornering, the other for straight driving. Total 2 shock absorbers per axle. This concept makes it possible to control these driving conditions independently. Pull rod in front, push rod in back.
  • Brakes
    ISR calipers, 4-piston axial front, 2-piston radial rear floating steel discs of our own production, 210 mm front diameter, 200 mm rear diameter
  • Wheels
    13'' magnesium OZ Racing
    Continental Slick C19 tyres
